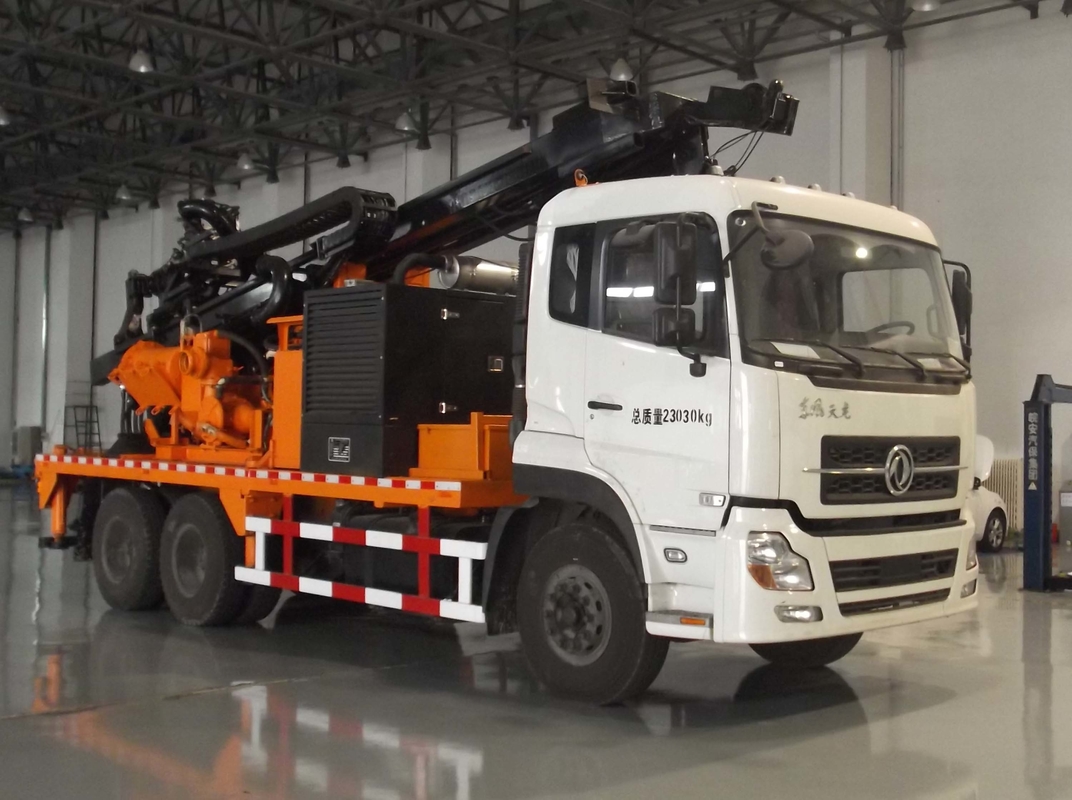

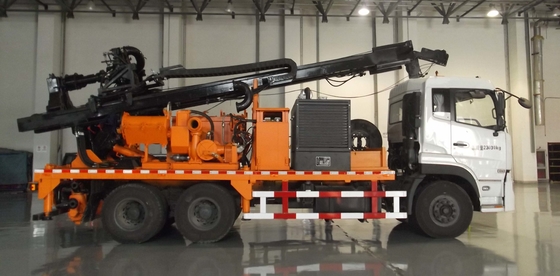

20T Load 266HP Truck Mounted Well Drilling Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| MODEL: | CDC-200 | DEPTH: | 200M |
|---|---|---|---|
| DRILLING DIAMETER: | 90MM-400MM | CHASSIS: | TRUCK/TRAILER/CRAWLER |
| DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | ENGINE BRAND: | WEICHAI DEUTZ |
| DRILL TOWER: | 20T | LIFTING FORCE: | 15T |
| DRILL PIPE: | 73MM/89MM/114MM/127MM | DRILL PIPE LENGTH: | 3M/4M/4.5M/6M |
| DRILLING FORM: | HYDRAULIC TOP HEAD DRIVE | ||
| High Light: | 266HP Truck Mounted Well Drilling Machine,20T Load Well Drilling Machine,120KW water drilling machine |
||
TRUCK MOUNTED WATER WELL DRILLING RIG DEPTH 200M HYDRAULIC TOP HEAD DRIVE USE MUD AND DTH HAM HAMMER AND
IT IS NOT ONLY SUITABLE FOR MUD DRILLING, BUT ALSO SUITABLE FOR DOWN THE HOLE HAMMER DRILLING AND AIR LIFT REVERSE CIRCULATION DRILLING.
FULL HYDRAULIC DESIGN, EASY AND FAST LOADING AND UNLOADING OF DRILL PIPE
CAN BE INSTALLED ON TRUCKS, TRAILERS AND TRACKS
HIGHER FUEL EFFICIENCY AND LESS CONSTRUCTION COST
DRILL TOWER
| length | 10M |
| Maximum safe working load | 20T |
Lifting and pressurizing system(Cylinder—wire rope)
| Pull down | 7T |
| Pull up | 15T |
Hydraulic hoist
| Lifting power | 1T |
generation
| 30KW |
ALL HYDRAULIC TOP HEAD DRIVE
| torque | 7500NM |
DEPTH
| depth | 200M |
CHASSIS
| Truck mounted | 266HP SINO TRUCK |
Air compressor
| SDF1025 | 2.4MPA 29m³/MIN |
POWER
| WEICHAI DEUTZ | 120KW |
