1100m 1300m 265KW Water Drilling Machine

1500M high efficiency trailer mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric power

Product introduction

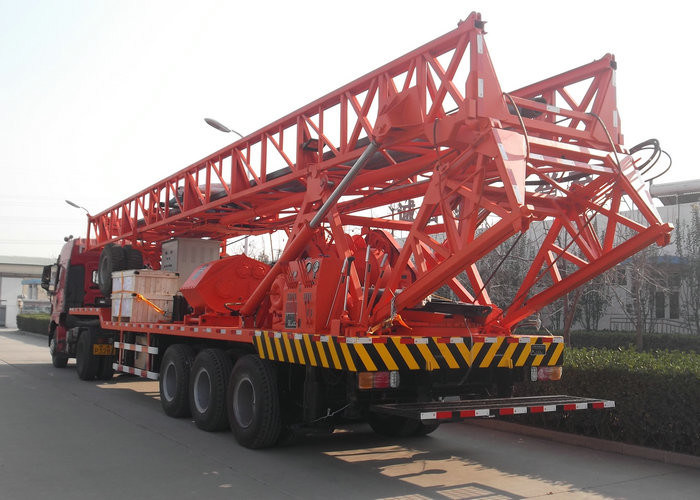

CDT-1500J multi-functional truck mounted water well drilling rig is a kind of high-efficiency and multi-functional water well drilling rig. Due to the large torque and high efficiency of the power head, it is mainly used in industrial and agricultural water wells, water source development, national defense building foundation, geological exploration, geothermal wells, foundation pile construction and other foundation projects, which are very popular at home and abroad.

The drilling rig is suitable for all drilling processes and all complex formations. Not affected by the ambient temperature of the construction site. In extremely cold and hot areas, it has the same excellent performance. The products have been tested by the market for a long time and are highly praised.

advantage

1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.

2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.

3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.

4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.

5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.

6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.

7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.

8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.

9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.

10. it can be equipped with foam pump to cool and lubricate the impactor, improve the return efficiency of drilling cuttings, and improve drilling efficiency.

11. It can be equipped with 30kW generator to provide power demand for field construction.

12. It can be equipped with diesel engine or motor as the driving force, or two kinds of power units can be installed at the same time to improve the environmental adaptability of drilling equipment.

13. The product supports personalized customization, which can be customized according to the needs of customers.
