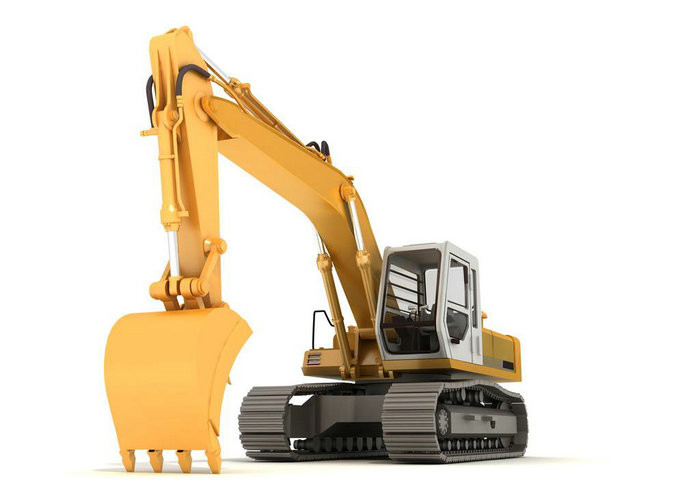

3.6t 65kpa Excavator Construction Equipment For Mine

EXCAVATOR

Energy saving and environmental protection

The positive flow double proportional valve control system is used to control the flow of the main pump according to the actual working conditions, so as to give full play to the diesel engine power and reduce the power loss of the whole hydraulic system;

At the same time, the pressure loss of the hydraulic system is further reduced, both of which can save 10% energy;

Mine specific design

A number of mine specific designs, including strengthening structural parts, standard oil bath pre filtration, further improving the performance of the whole radiator and hydraulic cleanliness, are more applicable to the mine;

parameter

Specification: total weight: 36000kg, bucket capacity: 1.6-2.32m3

Engine model: gh-6hk1xksc rated power: 212kw / 2000rpm

Large torque: 1080nm / 1500rpm displacement: 7.79l

Performance: travel speed: 5.5/3.5km/h, rotation speed: 9.5rpm

Climbing capacity: 70% (35 °) ground specific pressure: 65kpa

Bucket digging force: 235kn stick digging force: 180kn

Number of track shoes of traveling part: 49, each side of carrier roller: 2

Each side of roller: 9 standard track: 600mm

Oil and coolant capacity fuel tank: 690l hydraulic tank: 380L

Engine oil: 36L radiator: 12.3l

Final drive: 2 × 8.5l
