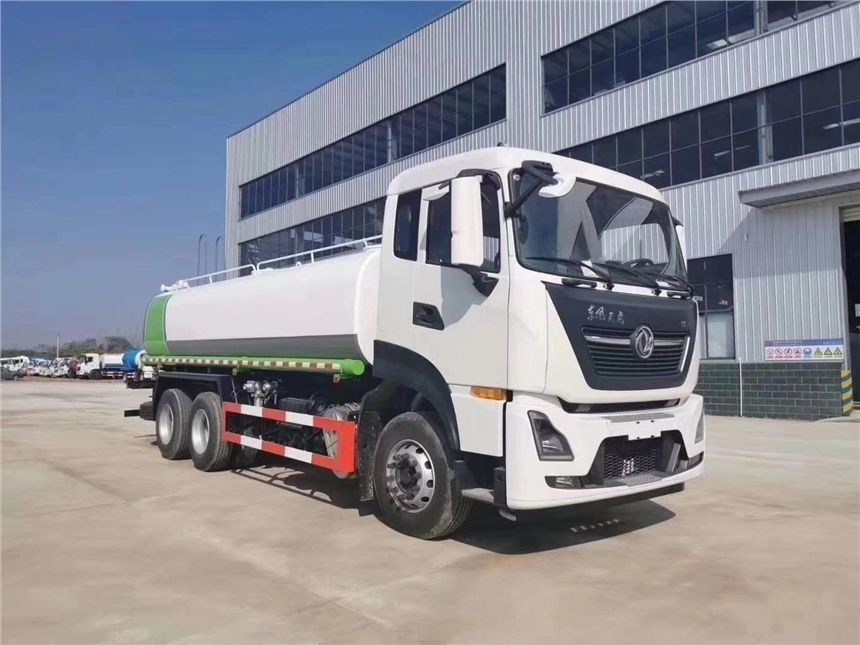

G6 Standard 14 Cubic Meters Water Tank Truck

WATERING CAR

Dongfeng Tianjin original special chassis, Dongfeng Tianjin cab, 4700mm wheelbase, equipped with guoliu Cummins 210 horsepower diesel engine, Dongfeng 6-speed gearbox, 9t rear axle, 10.00R20 steel tire / 275 vacuum tire, steering power, air brake, electric glass, multi-functional steering wheel, original air conditioning, ABS.

Special configuration: tank volume 14 cubic meters, the tank body is made of national standard Q235 carbon steel, the thickness of the tank body is 4mm, the front and rear end heads are 5mm thick, and the double-layer clapboard in the tank body has the function of anti surge, so as to reduce the liquid impact in the tank when the car is driving; the whole vehicle and the overall dimension of the sprinkler car are made in strict accordance with the national motor vehicle announcement; the high-power special sprinkler pump is assembled, and the front flushing, rear sprinkling, side spraying and rear platform are equipped with green sprinklers , the water cannon can rotate in all directions, and can be continuously adjusted into direct impact, heavy rain, light rain and drizzle; equipped with fire interface, self flow valve and filter screen, with self-priming and self draining function. The front head is equipped with a water level gauge, the rear platform main pipe is equipped with a 1-inch watering interface, the rear ladder is equipped with a fire connector, a self flow valve, a filter device, and the rest are equipped as standard. 1, optional platform with fog gun set for spray dust control, pesticide spraying operation; 2, optional pre electronic sprinkler cab operation; 3, optional pneumatic ball valve cab operation.

Engine: Cummins

Tank volume: 14 cubic meters

Chassis model: dfh1180ex8

Sprinkling width: 20m; vertical suction: 8M

Water cannon lift: 35m; wheelbase: 4700mm

Emission standard: G6 overall dimension: 85308500 × 2500 × 3250

Tire type: 10.00r20/275 side spray area: ＞ 20m2

Rear spraying area: ＞ 15 square meters; pump speed: 1180r / min
