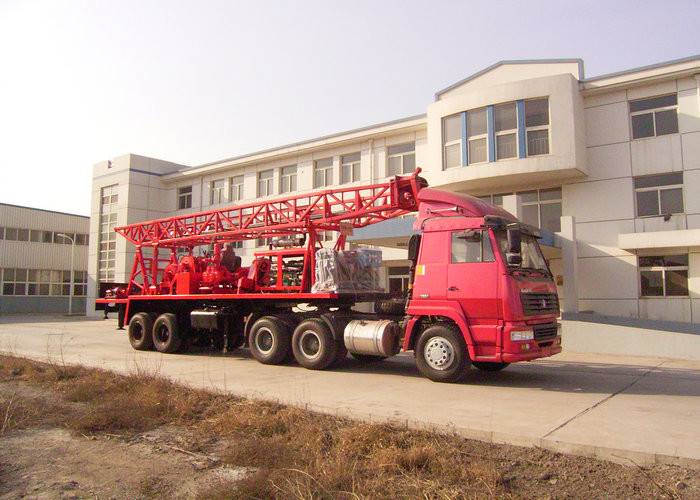

350m Trailer Mounted Drill Rig

350m Trailer Mounted Drill Rig

350m Trailer Mounted Drill Rig
350m Trailer Mounted Drill Rig

Large Image :  350m Trailer Mounted Drill Rig Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: COMMAND
Certification: ISO
Model Number: CDT-350J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 40 FR OR BULK CARGO SHIP OR RO RO SHIP
Delivery Time: 35days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10+SET+per35DAYS
Detailed Product Description
DEPTH: 350M DRILLING DIAMETER: 90MM—2000MM
CHASSIS: TRAILER DRILLING METHOLD: MUD DRILLING AND DTH-HAMMER AND OTHER
MUD PUMP: BW600/30 AIR COMPRESSOR: IT CAN BE INSTALLED ON THE DRILLING RIG
ENGINE BRAND: WEICHAI DEUTZ DRILL TOWER: LOAD 30TON
LIFTING FORCE: 20 TON DRILL PIPE: 73MM/89MM/114MM/127MM
DRILL PIPE LENGTH: 3M/4M/4.5M/6M DRILLING FORM: TOP HEAD DRIVE OR ROTARY TABLE
High Light:

350m Trailer Mounted Drill Rig

,

Diesel Power Trailer Mounted Drill Rig

,

Dia1800mm well drilling rig

350M high efficiency trailer mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric power



Product introduction

CDT-350J multi-functional trailer mounted water well drilling rig is a kind of high-efficiency and multi-functional water well drilling rig. Due to the large torque and high efficiency of the power head, it is mainly used in industrial and agricultural water wells, water source development, national defense building foundation, geological exploration, geothermal wells, foundation pile construction and other foundation projects, which are very popular at home and abroad.

The drilling rig is suitable for all drilling processes and all complex formations. Not affected by the ambient temperature of the construction site. In extremely cold and hot areas, it has the same excellent performance. The products have been tested by the market for a long time and are highly praised.



advantage

1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.

2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.

3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.

4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.

5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.

6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.

7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.

8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.

9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.

10. it can be equipped with foam pump to cool and lubricate the impactor, improve the return efficiency of drilling cuttings, and improve drilling efficiency.

11. It can be equipped with 30kW generator to provide power demand for field construction.

12. It can be equipped with diesel engine or motor as the driving force, or two kinds of power units can be installed at the same time to improve the environmental adaptability of drilling equipment.

13. The product supports personalized customization, which can be customized according to the needs of customers.

CDT-350J mechanical top head drive water well drilling rig
Comprehensive overview
Depth:300M-350M
Aperture:100MM-1800MM
Dimensions;12000mm×2500MM×4150MM
Total Weight:16500KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Liquid driven DTH hammer
A.CHASSIS
Code Name Model Parameter
A01 Trailer chassis Special Purpose for Engineering truck TRAILER
B.Drilling tower, Second floor chassis
Code Name Model Parameter
B01 Drill tower Truss type Drill tower load:30T
Operation:Two hydraulic support cylinders
Drill tower height:10M
B02 Pull up-Pull down cylinder Cylinder-wire rope structure Pull down:7T
Pull up: 20T
B03 Second floor chassis Connecting drill rig and truck chassis Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction
C.Drilling rig power
Code Name Model Parameter
C01 Diesel engine WEICHAI DEUTZ Power:120KW
Type:Six Cylinders, Water Cooling and Mechanical Supercharging
Revolutions:1800R/MIN
C02 Diesel Engine Monitor Matching Monitoring information such as speed, temperature and so on through diesel engine sensors
C03 The motor can be selected as the driving force.
Diesel engine and motor can also be installed at the same time
D.Mud pump
Code Name Model Parameter
D01 Mud pump BW600/30 Type:Double Cylinder Reciprocating Double-acting Piston Pump
Maximum pressure:3MPA
Cylinder liner diameter:130MM
MAXIMUM DISPLACEMENT:720L/MIN
D02 Matching pipe complete set Inner diameter of drainage pipe:3'
Inner diameter of suction pipe: 4'
Internal Diameter of Backwater Pipe:2'
E. Tool hoist
Code Name Model Parameter
E01 Hoist ZYJ2B Single rope pull up:2T
F. Rotation form
It has the advantages of hydraulic power head and rotary table
Code Name Model
F01 Power head Mechanical Gear position:5 positive turns,1 reversals
Torque:NM
Foreward:10000/4789/2799/1758/1234
Reversal:7599
Revolutions:RPM
Foreward:23/41/71/113/161
Reversal:26
G.Transmission case
Code Name Model Parameter
G01 Transmission case   Input torque:380NM
H. Other Parts and Components
Code Name Model Parameter
H01 Alternator STC-30KW Rated Power:30KW
Rated Current:72.2A
Rated Speed:1500RPM
H02 Form pump 8-36EX1 42L/MIN
4MPA
I.operating system
Code Name Model Parameter
I01 Control box   Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head clutch, power head shifting, etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
J.Can use drilling tools
Code Name Model Parameter
J01 Drill pipe Various specifications Diameter:Φ73mm/φ89mm/127mm
Length:3M/4M/4.5M/6M
J02 Bit Three-wing scraper bit
Steel tooth cone bit
Insert cone drill bit
Combined roller bit
J03 Impactor Low pressure, medium pressure, medium high pressure, high pressure
J04 Hammer bit Various sizes
J05 Air compressor   Exhaust volume:29m³/MIN
Exhaust pressure:2.4MPA
Finland TAMROTOR original screw box
According to customer requirements, we can choose various domestic and international air compressors.
