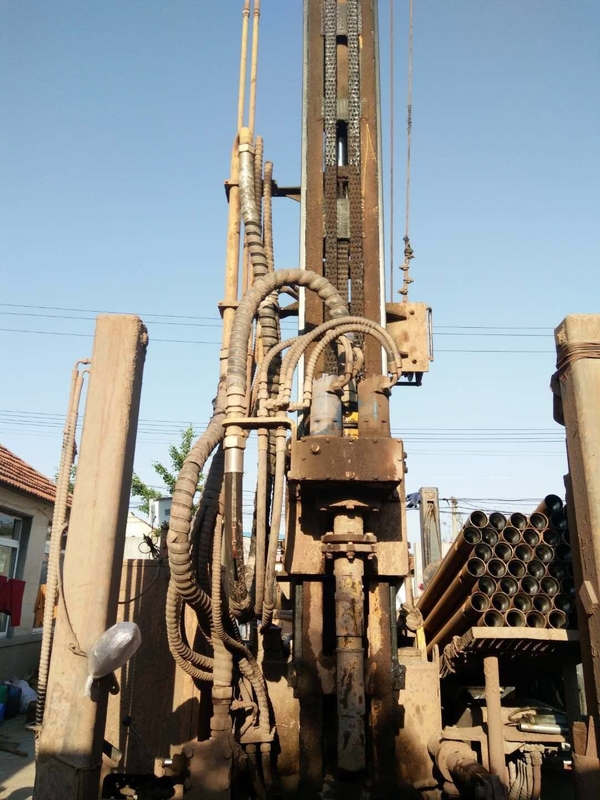

Diesel Engine Driven 450m Dia500mm Hydraulic Well Drilling Rig
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| DEPTH: | 450M | DRILLING DIAMETER: | 500 |
|---|---|---|---|
| DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | AIR COMPRESSOR: | IT CAN BE INSTALLED ON THE DRILLING RIG |
| DRILL PIPE: | 73MM/89MM/114MM/127MM | DRILL PIPE LENGTH: | 3M/4M/4.5M/6M |
| DRILLING FORM: | TOP HEAD DRIVE | Voltage: | Diesel Engine Driven |
| High Light: | Dia500mm Hydraulic Well Drilling Rig,Diesel Engine Driven water well rig,450m well drilling rig |
||
HYDRAULIC DRILLDRILLING RIG TOP HEAD DRIVE DTH AND MUD HIGH TORQUE
Product selling points
Equipment stability
The stability of construction machinery is highly demanded. We adopt high-level requirements for all parts of equipment. We upgrade a level from material to process to processing accuracy, so that all parts are always under the condition of non-full load, and greatly reduce the incidence of failure.
Technical Parameters:
| Item | Unit | CDC-450 | |
| Max drilling depth | m | 450 | |
| Drilling diameter | mm | 500 | |
| Air pressure | Mpa | 1.2-3.5 | |
| Air consumption | m3/min | 16-55 | |
| Rod length | m | 6 | |
| Rod diameter | mm | 89/114/127 | |
| Main shaft pressure | T | 25 | |
| Lifting force | T | 20 | |
| Fast lifting speed | m/min | 14 | |
| Fast forwarding speed | m/min | 21 | |
| Max rotary torque | N.m | 10000 | |
| Max rotary speed | r/min | 120 | |
| Big tool winch lifting force | T | 2 | |
| Jacks stroke | m | 1.6 | |
| Drilling efficiency | m/h | 10-35 | |
| Moving speed | Km/h | 2.5 | |
| Weight of the rig | T | 7 | |
| Dimension | m | 6.4*2.08*2.8 | |
| Working condition | Unconsolidated formation and Bedrock | ||
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling | ||
| Suitable hammer | Medium and high air pressure series | ||
| Optional accessories | Mud pump, Gentrifugal pump, Generator, Foam pump | ||
Advantage of water well drilling rig:
1. material
The main material of the rig is high strength seamless square pipe, which has excellent torsional performance and load-bearing capacity. The basic material of the whole equipment comes from large steel manufacturers such as Angang. They refuse to reduce the material standards and product costs.
