Product Details:
Payment & Shipping Terms:
|
MODEL: | CDC-600 | DEPTH: | 600M |
---|---|---|---|
DRILLING DIAMETER: | 500 | CHASSIS: | TRUCK |
DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | AIR COMPRESSOR: | IT CAN BE INSTALLED ON THE DRILLING RIG |
LIFTING FORCE: | 30 TON | DRILL PIPE: | 73MM/89MM/114MM/127MM |
DRILL PIPE LENGTH: | 3M/4M/4.5M/6M | DRILLING FORM: | TOP HEAD DRIVE |
High Light: | 505mm Aperture Water Well Drilling Rig,371HP 6×4 water well truck |

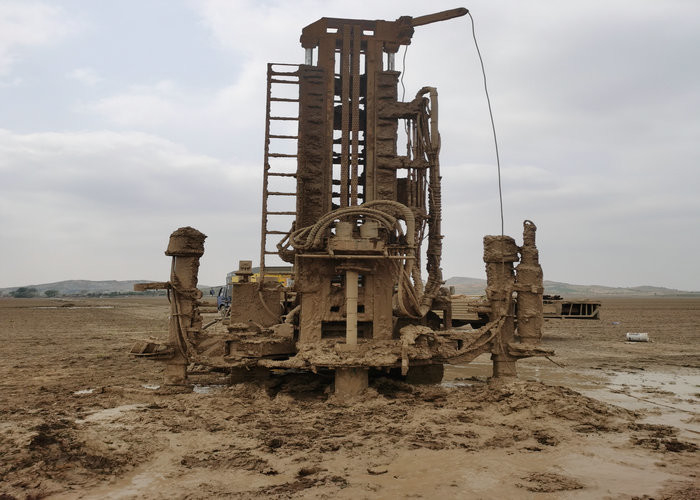

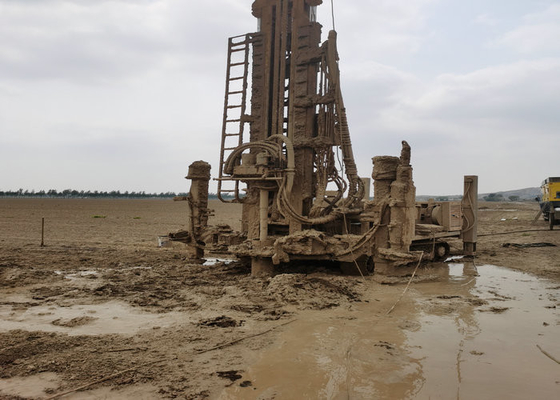

600M high efficiency truck mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric power
Product introduction
The hydraulic drilling machine is widely used in the fields of coal mine underground drilling and ground engineering drilling. It is specially suitable for cemented carbide drilling and percussion rotary drilling with impactor.
1. The drilling rig is mainly composed of main engine, power device and operation platform. Each part is connected by hose, which is convenient for layout, relocation and transportation on the construction site and easy to operate
2. The hydraulic system is a double oil pump system, the process parameters of rotation and feed can be adjusted independently, and the variable oil pump can realize constant torque speed regulation;
3. The cooperation action of hydraulic chuck and double acting clamp can realize mechanical screwing and unloading of drill pipe, which is suitable for overhead hole drilling;
4. The inclination angle of the fuselage is convenient to adjust;
5. Change chuck groups with different diameters to hold drill pipes with different diameters;
6. The hydraulic elements and gas parts are all made of internal and external high-quality products, with stable and reliable performance, high efficiency, energy saving and environmental protection;
The drilling machine is mainly used for the development of groundwater resources, including domestic water, agricultural water and industrial water, and also for hydrogeological exploration, construction engineering, bridge foundation drilling, etc.
CDT-600J multi-functional trailer mounted water well drilling rig is a kind of high-efficiency and multi-functional water well drilling rig. Due to the large torque and high efficiency of the power head, it is mainly used in industrial and agricultural water wells, water source development, national defense building foundation, geological exploration, geothermal wells, foundation pile construction and other foundation projects, which are very popular at home and abroad.
The drilling rig is suitable for all drilling processes and all complex formations. Not affected by the ambient temperature of the construction site. In extremely cold and hot areas, it has the same excellent performance. The products have been tested by the market for a long time and are highly praised.
advantage
1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.
2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.
3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.
4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.
5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.
6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.
7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.
8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.
9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.
10. it can be equipped with foam pump to cool and lubricate the impactor, improve the return efficiency of drilling cuttings, and improve drilling efficiency.
11. It can be equipped with 30kW generator to provide power demand for field construction.
12. It can be equipped with diesel engine or motor as the driving force, or two kinds of power units can be installed at the same time to improve the environmental adaptability of drilling equipment.
13. The product supports personalized customization, which can be customized according to the needs of customers.
TIANJIN COMMAND MACHINERY MANUFACTURING CO.,LTD E-MAIL:tjcommand@126.com commanddu@gmail.com Website:www.drillingrigchina.com Twitter:@fy87fy87 |
|||
CDC-600 water well drilling rig | |||
Comprehensive overview | |||
Depth:600M Aperture:505MM Dimensions;9500mm×2500MM×4000MM Total Weight:1500KG Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer. |
|||
A. CHASSIS | |||
Code | Name | Model | Parameter |
A01 | Truck chassis | Special Purpose for Engineering truck | Manufacturer: SINO TRUCK Driving form:6×4 371HP |
B.Drilling tower, Second floor chassis | |||
Code | Name | Model | Parameter |
B01 | Drilling tower | Retractable | Drill tower load:50T Operation:Two hydraulic support cylinders Drill tower height:6.8M |
B02 | Pull up-Pull down cylinder | Cylinder-wire rope structure | Pull down:12T Pull up: 30T |
B03 | Outrigger cylinder | High outrigger oil cylinder | self loading and unloading Brace: Four hydraulic leg cylinders Equipped with hydraulic lock to prevent leg retraction trip:1500MM |
C.Drilling rig power | |||
Code | Name | Model | Parameter |
C01 | Diesel engine | Power:120KW Type: Four Cylinders, Water Cooling and Mechanical Supercharging Revolutions:1800R/MIN |
|
C02 | Diesel Engine Monitor | Matching | Monitoring information such as speed, temperature and so on through diesel engine sensors |
D.Mud pump | |||
Code | Name | Model | |
D01 | Mud pump | 3PNL | |
E.Tool hoist | |||
Code | Name | Model | Parameter |
E01 | Hoist | ZYJ1B | Single rope pull up:1T |
F.Rotation form hydraulic power head |
|||
Code | Name | Model | Parameter |
F01 | Power head | Torque:10000NM Revolutions:0-120 RPM |
|
H.Other Parts and Components | |||
Code | Name | Model | Parameter |
H02 | Foam pump and oil filling device | B-36EX1 | Flow:42L/MIN Pressure:4MPA Revolutions:660R/MIN Improving the up-and-down efficiency of drilling cuttings, cooling and lubricating the impactor |
I.operating system | |||
Code | Name | Model | Parameter |
I01 | Control box | Integrated console Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc. Instrument: drilling tool weight gauge, system pressure gauge, etc. |
|
J. Can use drilling tools | |||
Code | Name | Model | Parameter |
J01 | Drill pipe | Various specifications | Diameter:Φ73mm/Φ89mm Length:3M |
J02 | Bit | Three-wing scraper bit Steel tooth cone bit Insert cone drill bit Combined roller bit |
|
J03 | Impactor | Low pressure, medium pressure, medium high pressure, high pressure | |
J04 | Hammer bit | Various sizes |
