6T Lorry Mounted Crane

6T Lorry Mounted Crane
6T Lorry Mounted Crane

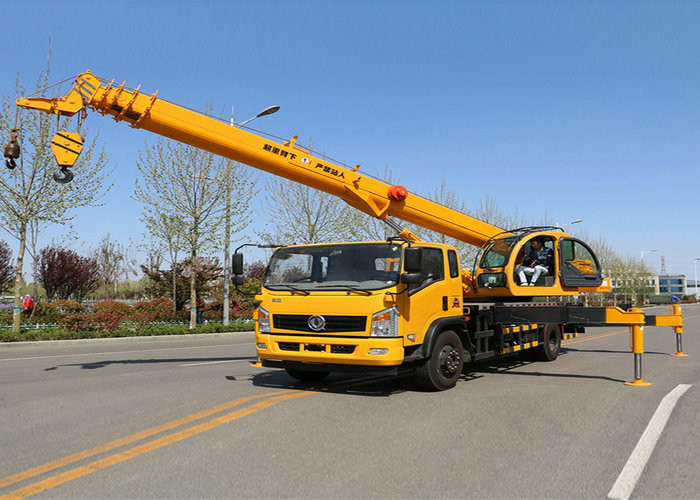

Large Image :  6T Lorry Mounted Crane Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: COMMAND MACHINE
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Ordinary container
Delivery Time: 35days
Payment Terms: TT L/C
Supply Ability: 10+SET+per35DAYS
Detailed Product Description
Engine: Guowu Yuchai 160hp Yc4e160-56 Tire: 1000r20 Steel Wire Tire
Brake: Air Brake Direction: Hydraulic Power
Wheelbase: 4500mm Maximum Speed: 90km / H
High Light:

6T Lorry Mounted Crane

,

90km/h Lorry Mounted Crane

6 ton truck crane



1. Chassis: special chassis for Jianghuai truck crane.

2. Engine: Guowu Yuchai 160hp yc4e160-56

3. Tire: 1000r20 steel wire tire

3. Brake: air brake

4. Direction: hydraulic power

5. Wheelbase: 4500mm

6. Maximum speed: 90km / h

7. Single arm length: 8M

8. Number of boom sections: 5

9. Boom structure: internal rope

10. Size of heavy section boom: height: 58cm, width: 48CM

11. Number of lifting legs: 5 (two legs on each side, with auxiliary rear legs)

12. Side outrigger structure: double leg, single leg span 2m (from the body)

13. Outrigger span: 6.4m; longitudinal span: 5m

14. Hydraulic system: three pump combined system

15. Fan heating system: air cooling fan heating system

16. Motor: 18.5kw

17. Double Winch: double bent plunger motor hydraulic winch

18. Large frame structure: I-beam steel box large frame

19. Torquer

20. Appearance dimension: 11280mm long, 2480mm wide, 3260mm high

21. Total mass: 17500kg
