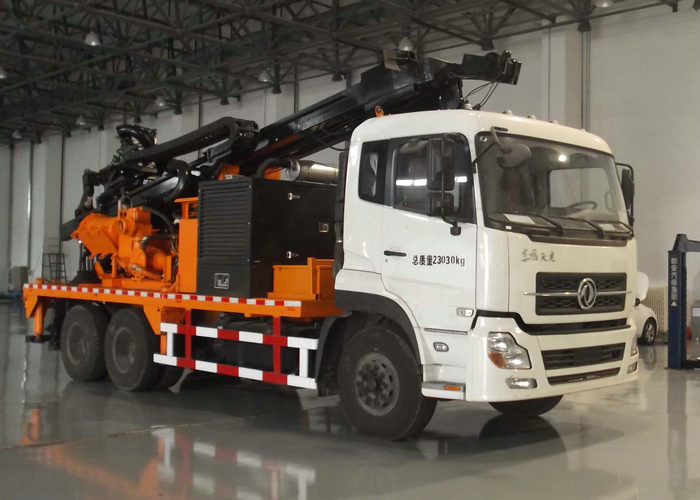

Air lift reverse circulation water well drilling machine Uranium mine / well
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 1 YEAR | Weight: | 20T |
|---|---|---|---|
| Drilling Depth: | 450M | Application: | Uranium Mine / Well |
| Engine: | DEUTZ |
Air lift reverse circulation water well drilling machine Uranium mine / well
IT IS NOT ONLY SUITABLE FOR MUD DRILLING, BUT ALSO SUITABLE FOR DOWN THE HOLE HAMMER DRILLING AND AIR LIFT REVERSE CIRCULATION DRILLING.
FULL HYDRAULIC DESIGN, EASY AND FAST LOADING AND UNLOADING OF DRILL PIPE
CAN BE INSTALLED ON TRUCKS, TRAILERS AND TRACKS
HIGHER FUEL EFFICIENCY AND LESS CONSTRUCTION COST
DRILL TOWER
| length | 10M |
| Maximum safe working load | 20T |
Lifting and pressurizing system(Cylinder—wire rope)
| Pull down | 7T |
| Pull up | 15T |
Hydraulic hoist
| Lifting power | 1T |
generation
| 30KW |
ALL HYDRAULIC TOP HEAD DRIVE
| torque | 7500NM |
DEPTH
| depth | 200M |
CHASSIS
| Truck mounted | 266HP SINO TRUCK |
Air compressor
| SDF1025 | 2.4MPA 29m³/MIN |
POWER
| WEICHAI DEUTZ | 120KW |
