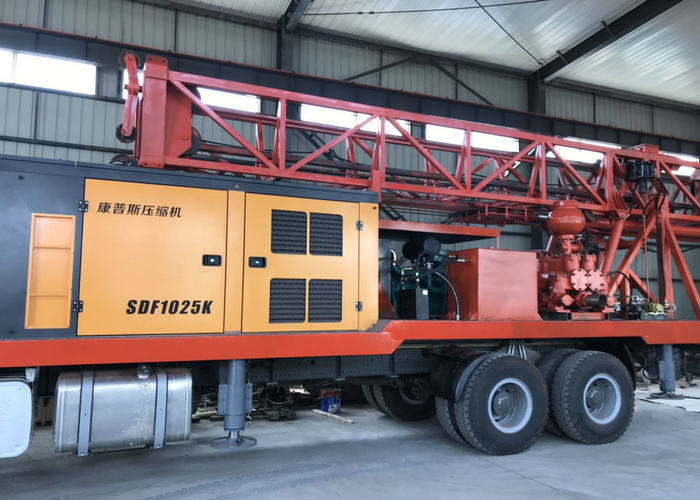

Large Aperture 54T Truck Mounted Drill Rig

Large Aperture 54T Truck Mounted Drill Rig

Large Aperture 54T Truck Mounted Drill Rig
Large Aperture 54T Truck Mounted Drill Rig

Large Image :  Large Aperture 54T Truck Mounted Drill Rig Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: COMMAND
Certification: ISO
Model Number: CDC-1500J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 40 FR OR BULK CARGO SHIP OR RO RO SHIP
Delivery Time: 35days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10+SET+per35DAYS
Detailed Product Description
MODEL: CDC-1500J DEPTH: 1500M
DRILLING DIAMETER: 90MM—2000MM CHASSIS: SINOTRUCK 4×2 / 4×4 / 6×4 / 6×6 / 8×4 /8×8
DRILLING METHOLD: MUD DRILLING AND DTH-HAMMER AND OTHER MUD PUMP: BW1500/12
AIR COMPRESSOR: IT CAN BE INSTALLED ON THE DRILLING RIG ENGINE BRAND: WEICHAI DEUTZ 256KW(343HP)
DRILL TOWER: LOAD 60TON LIFTING FORCE: 54 TON
DRILL PIPE: 73MM/89MM/114MM/127MM DRILL PIPE LENGTH: 3M/4M/4.5M/6M/9M
DRILLING FORM: TOP HEAD DRIVE OR ROTARY TABLE
High Light:

Large Aperture Truck Mounted Drill Rig

,

54T Truck Mounted Drill Rig

,

dia2000mm well drilling rig

1500M high efficiency truck mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric power Large aperture, vertical



Product introduction

CDC-1500J multi-functional truck mounted water well drilling rig is a kind of high-efficiency and multi-functional water well drilling rig. Due to the large torque and high efficiency of the power head, it is mainly used in industrial and agricultural water wells, water source development, national defense building foundation, geological exploration, geothermal wells, foundation pile construction and other foundation projects, which are very popular at home and abroad.

The drilling rig is suitable for all drilling processes and all complex formations. Not affected by the ambient temperature of the construction site. In extremely cold and hot areas, it has the same excellent performance. The products have been tested by the market for a long time and are highly praised.



advantage

1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.

2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.

3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.

4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.

5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.

6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.

7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.

8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.

9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.

10. it can be equipped with foam pump to cool and lubricate the impactor, improve the return efficiency of drilling cuttings, and improve drilling efficiency.

11. It can be equipped with 30kW generator to provide power demand for field construction.

12. It can be equipped with diesel engine or motor as the driving force, or two kinds of power units can be installed at the same time to improve the environmental adaptability of drilling equipment.

13. The product supports personalized customization, which can be customized according to the needs of customers.



CDC-1500J mechanical top head drive water well drilling rig
Comprehensive overview
Depth:1000M-1500M
Aperture:90MM-2000MM
Dimensions;13000mm×2500MM×4150MM
Total Weight:26500KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Liquid driven DTH hammer
A.CHASSIS
Code Name Model Parameter
A01 Truck chassis Special Purpose for Engineering truck Manufacturer:SINO TRUCK
Driving form:6×4/ 6×6/ 8×4/ 8×8
B.Drilling tower, Second floor chassis
Code Name Model Parameter
B01 Drill tower Truss type Drill tower load:60T
Operation:Two hydraulic support cylinders
Drill tower height:11M OR 15M
B03 Second floor chassis Connecting drill rig and truck chassis Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction
C.Drilling rig power
Code Name Model Parameter
C01 Diesel engine WEICHAI DEUTZ Power:265KW
Type:Six Cylinders, Water Cooling and Mechanical Supercharging
Revolutions:1800R/MIN
Compression Ratio:18:1
C02 Diesel Engine Monitor Matching Monitoring information such as speed, temperature and so on through diesel engine sensors
C03 The motor can be selected as the driving force.
Diesel engine and motor can also be installed at the same time
D.Mud pump
Code Name Model Parameter
D01 Mud pump BW1500/12 Type:Four Cylinder
Maximum pressure:12MPA
Cylinder liner diameter:150MM
MAXIMUM DISPLACEMENT:1500L/MIN
D02 Matching pipe complete set Inner diameter of drainage pipe:3.5'
Inner diameter of suction pipe: 6'
E.Hoist
Code Name Model Parameter
E01 Hoist   Single rope pull up:9T
Hook:54T
E02 Tool hoist   Single rope pull up:3T
F.Rotation form
It has the advantages of hydraulic power head and rotary table
Code Name Model Parameter
F01 POWER HEAD CT-1 Gear position:7 positive turns,1 reversals
Torque:NM
Foreward:13000/8890/5530/4465/3376/2113/1361
Reversal:8965
Revolutions:RPM
Foreward:27/35/49/80/99/131/208
Reversal:35
G.Transmission case
Code Name Model Parameter
G01 Transmission case 7DS100 输入扭矩Input torque:1000NM
H.Other Parts and Components
Code Name Model Parameter
H01 Alternator STC-30KW Rated Power:30KW
Rated Current:72.2A
Rated Speed:1500RPM
H02 Form pump 8-36EX1 42L/MIN
4MPA
I.operating system
Code Name Model Parameter
I01 Control box   Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, clutch, shifting, etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
J.Can use drilling tools
Code Name Model Parameter
J01 Drill pipe Various specifications Diameter:Φ73mm/φ89mm/127mm
Length:3M/4M/4.5M/6M/9M
J02 Bit Three-wing scraper bit
Steel tooth cone bit
Insert cone drill bit
Combined roller bit
J03 Impactor Low pressure, medium pressure, medium high pressure, high pressure
J04 Hammer bit Various sizes
J05 Air compressor   Exhaust volume:29m³/MIN
Exhaust pressure:2.4MPA
Finland TAMROTOR original screw box
According to customer requirements, we can choose various domestic and international air compressors.
