MODEL: | CDC-1500J | DEPTH: | 1500M |
---|---|---|---|
DRILLING DIAMETER: | 90MM—2000MM | CHASSIS: | SINOTRUCK 4×2 / 4×4 / 6×4 / 6×6 / 8×4 /8×8 |
DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | MUD PUMP: | BW1500/12 |
AIR COMPRESSOR: | IT CAN BE INSTALLED ON THE DRILLING RIG | ENGINE BRAND: | WEICHAI DEUTZ 256KW(343HP) |
DRILL TOWER: | LOAD 60TON | LIFTING FORCE: | 54 TON |
DRILL PIPE: | 73MM/89MM/114MM/127MM | DRILL PIPE LENGTH: | 3M/4M/4.5M/6M/9M |
DRILLING FORM: | TOP HEAD DRIVE OR ROTARY TABLE |

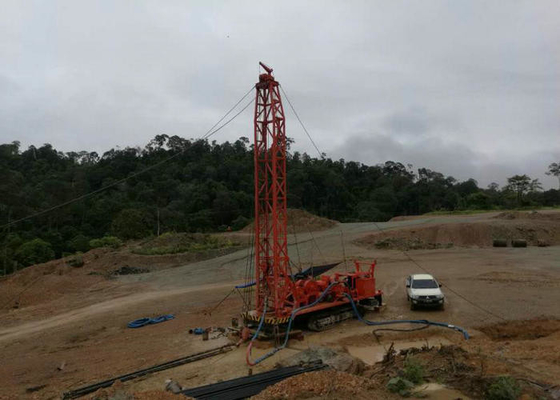

High efficiency truck mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric Drilling technology:
P[ositive circulation of mud:
DTH-HAMMER
Advantage:
1. Suitable for complete bedrock or more strata, the more hard the formation of the higher efficiency
2. Slagging speed, to avoid repeated broken
3. Rotation speed is low, balance is good, to ensure the verticality of drilling
4. Due to the small torque required, the equipment requirements are low
The air compressor and mud pump can all be installed on the drilling rig, and the turntable, power head torque, drilling tower torsion performance, drilling large aperture, equipped with a foam pump to enhance the anti-drilling efficiency.
Foam pump
Advantage:
1. Wide range of applications, suitable for all kinds of formations
2. In the mud pump displacement pressure is large enough, the depth of no requirements
3.For the easily collapsing strata, the ability of the wall protection is strong and it is not easy to bury the drill.
4. Other parts and components needed, the price is relatively low
5. Drill pipe and other drilling tools require low, you can use different specifications of the length of the drill pipe
COMMAND Advantage
40 years of positive recycling process experience, familiar with all kinds of stratum construction methods to solve customer's worries
Mechanical power head:
In view of the advantages and disadvantages of the above two drilling forms, Tianjin COMMAND Machinery Manufacturing Co., Ltd has developed a mechanical power head drilling rig. This form ensures 96% of the transmission efficiency, and as a top drive, the drill pipe time is the same as that of the hydraulic power head drill. And because it is mechanical transmission, convenient maintenance, not affected by the natural environment, always ensure the efficiency of the customer.
The biggest factor affecting drilling aperture is the torque of turntable or power head.
The biggest advantage of the turntable drilling rig is the aperture. Because of the high transmission efficiency and the strong and durable structure, it can reach a larger aperture. The disc type drilling rig of Tianjin COMMAND Machinery Equipment Manufacturing Co., Ltd. can reach 2000MM in actual use, and the hydraulic power head type drilling rig is low in transmission efficiency and the main power is passed through liquid. The maximum diameter of the motor is only 245MM. So the mechanical power head drilling machine has great advantages. Our company's CDC-600J drilling rig achieves 2000MM diameter in actual use.2. from the drilling machine overall material convenience comparison:
Drill tower
1. One of the factors affecting drilling depth is the load of the drill tower, and the load of the drill tower is related to the drilling tools and well pipes that the user can use. We put the rig load within 300 meters of the rig all located in 30T, within 800 meters of the load of rig rig is 50T. Taking the 89 drill rod as an example, the weight of the drill rod with a weight of 20KG/M and a depth of 300 meters is 6T. The gravity acceleration and the friction force of the hole wall are taken into consideration. The basic principle of the load of the drill tower is the weight of the drill tool by 3, that is, the maximum safety load is 18T. But the weight of the large bore hole pipe is much heavier than that of the drill rod. The quality of the material of the drill tower can ensure that the user is always in a safe state and can carry out a variety of operations. The drill towers of Tianjin COMMAND Machinery Equipment Manufacturing Co., Ltd. all use seamless square steel pipe and channel steel, and use the national standard steel, the supplier is AISC and other large state-owned enterprises, the selected steel models have a great temperature range, which can be applied to all construction areas. Safety is efficiency and safety is the guarantee. This is also an important point of Tianjin COMMAND Machinery Manufacturing Co., Ltd., which is different from other manufacturers.
2. The drill tower has another very important parameter, which is the torsion resistance. All the counterforces of the drilling tool are all on the drill tower during the rotation process. If the material of the drill tower is poor, it will cause the deformation and the hidden danger of safety. The drilling rig produced by Tianjin COMMAND Machinery Manufacturing Co., Ltd has excellent torsion resistance and can not be compared with other manufacturers from the material and design. The high strength seamless square steel will provide the most reliable guarantee for the equipment.
Box and transmission:
There are many kinds of transmission boxes, transmission gears, transmission shaft and so on. In accordance with the most rigorous technological process, we carry out basic production, regardless of quenching, measuring and turning technology. And the selection of high strength steel material. Taking CDC-600J drill as an example, in the early design of material selection and processing, it is designed according to the working strength of the 700 meter drill, ensuring that all the parts of the rig are always in the safe working range, greatly reducing the wear and consumption and providing the security and safety for the customers.
3. drilling machine overall design concept.
Rig mounted part:
Tianjin COMMAND Machinery Manufacturing Co., Ltd. has more than ten years of experience in African work, through their information feedback, the information to the designer, so the functions of the equipment and the original purpose of the design are based on the actual needs of the customer as a starting point.
There are many kinds of transmission boxes, transmission gears, transmission shaft and so on. In accordance with the most rigorous technological process, we carry out basic production, regardless of quenching, measuring and turning technology. And the selection of high strength steel material. Taking CDC-600J drill as an example, in the early design of material selection and processing, it is designed according to the working strength of the 700 meter drill, ensuring that all the parts of the rig are always in the safe working range, greatly reducing the wear and consumption and providing the security and safety for the customers.
drilling machine overall design concept.
Rig mounted part:
Tianjin COMMAND Machinery Manufacturing Co., Ltd. has more than ten years of experience in African work, through their information feedback, the information to the designer, so the functions of the equipment and the original purpose of the design are based on the actual needs of the customer as a starting point.
Drill rig with wire rope cylinder pressurization system, the initial opening can achieve pressure drilling, improve drilling efficiency. Lifting and lowering cylinders can be operated simply, loading and unloading drill pipes with high speed and high efficiency.
Product introduction
CDC-1500J multi-functional truck mounted water well drilling rig is a kind of high-efficiency and multi-functional water well drilling rig. Due to the large torque and high efficiency of the power head, it is mainly used in industrial and agricultural water wells, water source development, national defense building foundation, geological exploration, geothermal wells, foundation pile construction and other foundation projects, which are very popular at home and abroad.
The drilling rig is suitable for all drilling processes and all complex formations. Not affected by the ambient temperature of the construction site. In extremely cold and hot areas, it has the same excellent performance. The products have been tested by the market for a long time and are highly praised.
advantage
1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.
2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.
3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.
4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.
5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.
6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.
7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.
8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.
9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.
10. it can be equipped with foam pump to cool and lubricate the impactor, improve the return efficiency of drilling cuttings, and improve drilling efficiency.
11. It can be equipped with 30kW generator to provide power demand for field construction.
12. It can be equipped with diesel engine or motor as the driving force, or two kinds of power units can be installed at the same time to improve the environmental adaptability of drilling equipment.
13. The product supports personalized customization, which can be customized according to the needs of customers.
CDC-1500J mechanical top head drive water well drilling rig | |||
Comprehensive overview | |||
Depth:1000M-1500M Aperture:90MM-2000MM Dimensions;13000mm×2500MM×4150MM Total Weight:26500KG Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Liquid driven DTH hammer |
|||
A.CHASSIS | |||
Code | Name | Model | Parameter |
A01 | Truck chassis | Special Purpose for Engineering truck | Manufacturer:SINO TRUCK Driving form:6×4/ 6×6/ 8×4/ 8×8 |
B.Drilling tower, Second floor chassis | |||
Code | Name | Model | Parameter |
B01 | Drill tower | Truss type | Drill tower load:60T Operation:Two hydraulic support cylinders Drill tower height:11M OR 15M |
B03 | Second floor chassis | Connecting drill rig and truck chassis | Brace:Four hydraulic leg cylinders Equipped with hydraulic lock to prevent leg retraction |
C.Drilling rig power | |||
Code | Name | Model | Parameter |
C01 | Diesel engine | WEICHAI DEUTZ | Power:265KW Type:Six Cylinders, Water Cooling and Mechanical Supercharging Revolutions:1800R/MIN Compression Ratio:18:1 |
C02 | Diesel Engine Monitor | Matching | Monitoring information such as speed, temperature and so on through diesel engine sensors |
C03 | The motor can be selected as the driving force. Diesel engine and motor can also be installed at the same time |
||
D.Mud pump | |||
Code | Name | Model | Parameter |
D01 | Mud pump | BW1500/12 | Type:Four Cylinder Maximum pressure:12MPA Cylinder liner diameter:150MM MAXIMUM DISPLACEMENT:1500L/MIN |
D02 | Matching pipe | complete set | Inner diameter of drainage pipe:3.5' Inner diameter of suction pipe: 6' |
E.Hoist | |||
Code | Name | Model | Parameter |
E01 | Hoist | Single rope pull up:9T Hook:54T |
|
E02 | Tool hoist | Single rope pull up:3T | |
F.Rotation form It has the advantages of hydraulic power head and rotary table |
|||
Code | Name | Model | Parameter |
F01 | POWER HEAD | CT-1 | Gear position:7 positive turns,1 reversals Torque:NM Foreward:13000/8890/5530/4465/3376/2113/1361 Reversal:8965 Revolutions:RPM Foreward:27/35/49/80/99/131/208 Reversal:35 |
G.Transmission case | |||
Code | Name | Model | Parameter |
G01 | Transmission case | 7DS100 | 输入扭矩Input torque:1000NM |
H.Other Parts and Components | |||
Code | Name | Model | Parameter |
H01 | Alternator | STC-30KW | Rated Power:30KW Rated Current:72.2A Rated Speed:1500RPM |
H02 | Form pump | 8-36EX1 | 42L/MIN 4MPA |
I.operating system | |||
Code | Name | Model | Parameter |
I01 | Control box | Integrated console Lifting and boring tower, outrigger cylinder, lifting, lowering, clutch, shifting, etc. Instrument: drilling tool weight gauge, system pressure gauge, etc. |
|
J.Can use drilling tools | |||
代号 Code |
名称Name | 规格 Model |
参数Parameter |
J01 | Drill pipe | Various specifications | Diameter:Φ73mm/φ89mm/127mm Length:3M/4M/4.5M/6M/9M |
J02 | Bit | Three-wing scraper bit Steel tooth cone bit Insert cone drill bit Combined roller bit |
|
J03 | Impactor | Low pressure, medium pressure, medium high pressure, high pressure | |
J04 | Hammer bit | Various sizes | |
J05 | Air compressor | Exhaust volume:29m³/MIN Exhaust pressure:2.4MPA Finland TAMROTOR original screw box According to customer requirements, we can choose various domestic and international air compressors. |
