| MODEL: | CDTL-200 | DEPTH: | 200M |
|---|---|---|---|
| DRILLING DIAMETER: | 90MM-400MM | CHASSIS: | TRACTOR |
| DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | DRILL TOWER: | LOAD 15TON |
| LIFTING FORCE: | 10 TON | DRILL PIPE: | 73MM/89MM/114MM/127MM |
| DRILL PIPE LENGTH: | 3M | ||
| Highlight: | Depth 200m Water Well Drilling Rig,Tractor Mounted Water Well Drilling Rig,30KM/H water drilling machine |
||

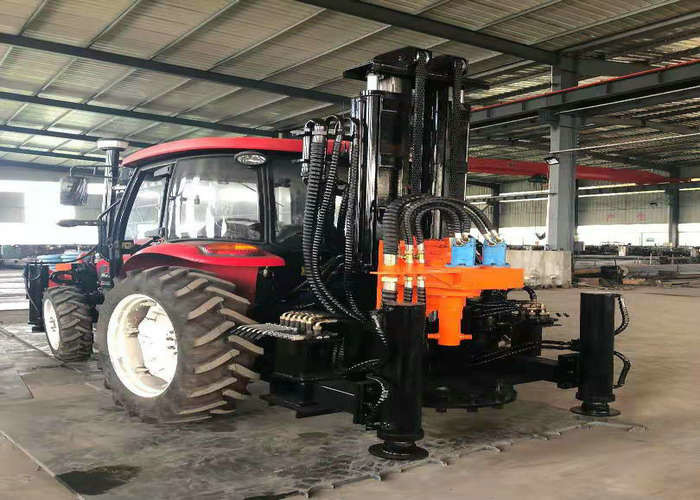

TRACTOR MOUNTED WATER WELL DRILLING RIG DEPTH 200M TOP HEAD DRIVE USE MUD AND DTH HAMMER
The integrated design of drilling machine and tractor makes it easy to handle, fast and efficient. It can be drilled by air compressor and mud
| CDTL-200 top head drive water well drilling rig | |||
| Comprehensive overview | |||
| Depth:200M Aperture:90MM-400MM Dimensions；3000mm×1300MM×1950MM Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer. |
|||
| A.parameter | |||
| Code | Parameter | Remarks | |
| 1 | Borehole diameter | 90MM-311MM | |
| 2 | Drilling depth | 200M | |
| 3 | Running speed | 30KM/H | |
| 4 | Working air pressure | 0.7-2.5MPA | |
| 5 | Air demand | 5-30m³/MIN | |
| 6 | Skyscraper travel | 1800MM/2000MM | |
| 7 | Maximum Torque | 4500NM | |
| 8 | Lifting power | 10T | |
| 9 | Increasing speed | 40M/MIN | |
| 10 | Rotating speed | 50-120RPM | |
| 11 | Drill pipe length | 1500MM | |
| 12 | drill pipe diameter | 76MM/89MM | |
