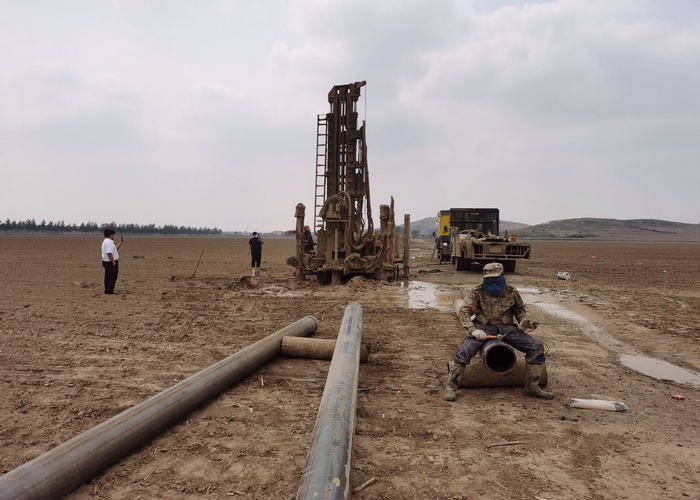

200m Hydraulic Water Well Drilling Machine

200M high efficiency trailer mounted water well drilling rig mud drill and DTH-Hammer Water Drilling Equipment Diesel power or Electric power

Product introduction

The hydraulic drilling machine is widely used in the fields of coal mine underground drilling and ground engineering drilling. It is specially suitable for cemented carbide drilling and percussion rotary drilling with impactor.

1. The drilling rig is mainly composed of main engine, power device and operation platform. Each part is connected by hose, which is convenient for layout, relocation and transportation on the construction site and easy to operate

2. The hydraulic system is a double oil pump system, the process parameters of rotation and feed can be adjusted independently, and the variable oil pump can realize constant torque speed regulation;

3. The cooperation action of hydraulic chuck and double acting clamp can realize mechanical screwing and unloading of drill pipe, which is suitable for overhead hole drilling;

4. The inclination angle of the fuselage is convenient to adjust;

5. Change chuck groups with different diameters to hold drill pipes with different diameters;

6. The hydraulic elements and gas parts are all made of internal and external high-quality products, with stable and reliable performance, high

advantage

1. The drill tower is of truss structure, with high bearing capacity, torsional resistance and wind resistance, so as to adapt to most of the harsh field environment.

2. Unique top head drive design. Mechanical transmission of power is adopted to avoid the impact of the use environment on the hydraulic oil; the output torque is large, which is suitable for the construction of various specifications of apertures, not only for drilling wells, but also for the construction of foundation piles; the mechanical transmission efficiency is high, and the oil consumption is low.The problem of hydraulic power head is avoided, and it has more advantages than hydraulic power head.

3. Parts are not easy to be damaged, durable, easy to maintain, low cost and low requirements for operators.

4. The drilling rig is equipped with high pressure and large flow piston double acting mud pump, which is suitable for soft formation such as sand, mudstone and hard formation such as rock. The mud pump and air compressor can be installed on a drilling machine to improve the overall mobility of the equipment, and the mud and air DTH hammer can be used for drilling.

5. The rig is equipped with lifting and pressurizing cylinders. When drilling to a certain depth, the pressure can be reduced to improve the drilling accuracy. The lifting and lowering of drilling tools are simple and efficient.

6. The main operation mode of the drilling rig is hydraulic operation, which is convenient and fast.

7. Unique drill pipe lifter. Save the operation time of loading and unloading drill pipe.

8. Equipped with tool winch. Auxiliary hoisting drilling tools such as drilling tools.

9. We have a team of engineers with 30 years of construction experience at home and abroad, and assign special personnel to monitor and serve the equipment of each user.
