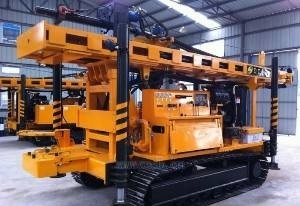

Hydraulic Water Well Drilling Rig Machine

Hydraulic Water Well Drilling Rig Machine

Hydraulic Water Well Drilling Rig Machine
Hydraulic Water Well Drilling Rig Machine

Large Image :  Hydraulic Water Well Drilling Rig Machine Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: COMMAND
Certification: ISO
Model Number: CDC-200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 40 FR OR BULK CARGO SHIP OR RO RO SHIP
Delivery Time: 35days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10+SET+per35DAYS
Detailed Product Description
DEPTH: 200M DRILLING DIAMETER: 500
DRILLING METHOLD: MUD DRILLING AND DTH-HAMMER AND OTHER AIR COMPRESSOR: IT CAN BE INSTALLED ON THE DRILLING RIG
LIFTING FORCE: 30 TON DRILL PIPE: 73MM/89MM/114MM/127MM
DRILL PIPE LENGTH: 3M/4M/4.5M/6M DRILLING FORM: TOP HEAD DRIVE
Condition: New
High Light:

Hydraulic Water Well Drilling Rig Machine

,

200m Water Well Drilling Rig Machine

,

dia500mm water well rig

HYDRAULIC DRILLDRILLING RIG TOP HEAD DRIVE DTH AND MUD HIGH TORQUE



Product selling points



parts layout

The layout of a good mechanical equipment must be reasonable. On the premise of satisfying all the personalized needs of users, after reasonable layout design, customers'expenditure can be saved. In the design of some models, we can install all air compressors and mud pumps on drilling rigs to save customers'expenses.



Technical Parameters:



Item Unit CDC-200
Max drilling depth m 200
Drilling diameter mm 500
Air pressure Mpa 1.2-3.5
Air consumption m3/min 16-55
Rod length m 6
Rod diameter mm 89/114/127
Main shaft pressure T 25
Lifting force T 10
Fast lifting speed m/min 14
Fast forwarding speed m/min 21
Max rotary torque N.m 10000
Max rotary speed r/min 120
Big tool winch lifting force T 2
Jacks stroke m 1.6
Drilling efficiency m/h 10-35
Moving speed Km/h 2.5
Weight of the rig T 7
Dimension m 6.4*2.08*2.8
Working condition Unconsolidated formation and Bedrock
Drilling method Top drive hydraulic rotary and pushing, hammer or mud drilling
Suitable hammer Medium and high air pressure series
Optional accessories Mud pump, Gentrifugal pump, Generator, Foam pump




Advantage of water well drilling rig:



1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. The water well drilling machine is easy to transport and can learn how to handle the water well drilling machine in short time;
4. The water well drilling machine can drill through hard stratum
