Product Details:
Payment & Shipping Terms:
|
| DEPTH: | 600M | DRILLING DIAMETER: | 500 |
|---|---|---|---|
| DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | AIR COMPRESSOR: | IT CAN BE INSTALLED ON THE DRILLING RIG |
| LIFTING FORCE: | 30 TON | DRILL PIPE: | 73MM/89MM/114MM/127MM |
| DRILL PIPE LENGTH: | 3M/4M/4.5M/6M | DRILLING FORM: | TOP HEAD DRIVE |
| Highlight: | 600m Depth Water Well Rig,30T Water Well Rig,dia500mm well drilling equipment |
||

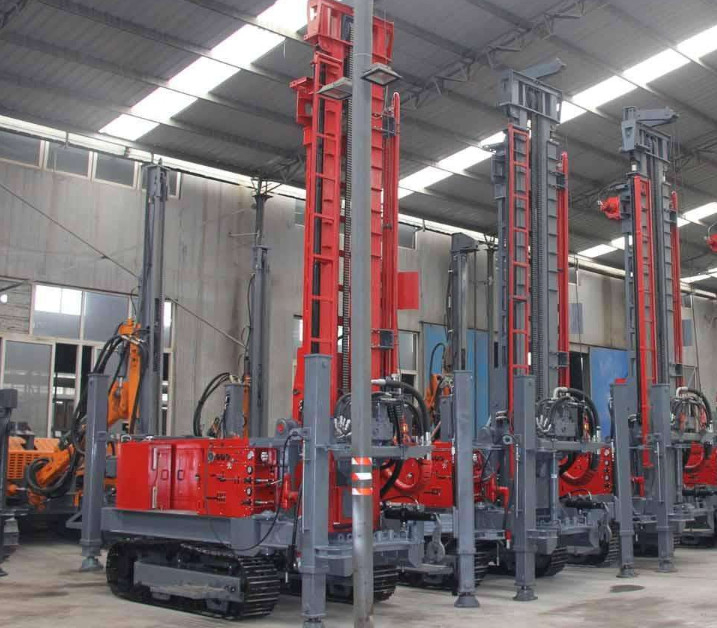

HYDRAULIC DRILLDRILLING RIG TOP HEAD DRIVE DTH AND MUD HIGH TORQUE
Product selling points
1. The drilling depth is 200-2000m, and the hole diameter covers 100-2000mm.
2. Full hydraulic control is convenient and flexible
3. The rotating speed, torque, propulsive axial pressure, counter axial pressure, propulsive speed and hoisting speed of the drilling rig can be adjusted at any time to meet the requirements of different drilling tool operating conditions and different construction processes
4. Top drive rotary propulsion lift
Technical Parameters:
| Item | Unit | CDC-600 | |
| Max drilling depth | m | 600 | |
| Drilling diameter | mm | 500 | |
| Air pressure | Mpa | 1.2-3.5 | |
| Air consumption | m3/min | 16-55 | |
| Rod length | m | 6 | |
| Rod diameter | mm | 89/114/127 | |
| Main shaft pressure | T | 25 | |
| Lifting force | T | 30 | |
| Fast lifting speed | m/min | 14 | |
| Fast forwarding speed | m/min | 21 | |
| Max rotary torque | N.m | 10000 | |
| Max rotary speed | r/min | 120 | |
| Big tool winch lifting force | T | 2 | |
| Jacks stroke | m | 1.6 | |
| Drilling efficiency | m/h | 10-35 | |
| Moving speed | Km/h | 2.5 | |
| Weight of the rig | T | 12 | |
| Dimension | m | 6.4*2.08*2.8 | |
| Working condition | Unconsolidated formation and Bedrock | ||
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling | ||
| Suitable hammer | Medium and high air pressure series | ||
| Optional accessories | Mud pump, Gentrifugal pump, Generator, Foam pump | ||
Advantage of water well drilling rig:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. The water well drilling machine is easy to transport and can learn how to handle the water well drilling machine in short time;
4. The water well drilling machine can drill through hard stratum
5. Positive and negative axial pressure adjustment
