DEPTH: | 800M | CHASSIS: | TRUCK |
---|---|---|---|
DRILLING METHOLD: | MUD DRILLING AND DTH-HAMMER AND OTHER | AIR COMPRESSOR: | IT CAN BE INSTALLED ON THE DRILLING RIG |
LIFTING FORCE: | 30 TON | DRILL PIPE: | 73MM/89MM/114MM/127MM |
DRILL PIPE LENGTH: | 3M/4M/4.5M/6M | Certification: | ISO9001 |
High Light: | 2.5km/H Well Drilling Equipment,800m depth Well Drilling Equipment,10000N.m water drilling rig |

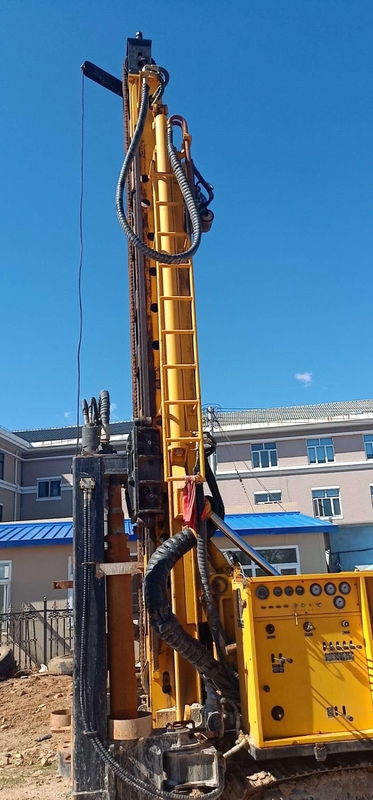

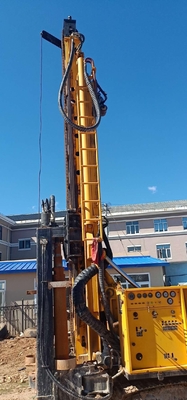

HYDRAULIC DRILLDRILLING RIG TOP HEAD DRIVE DTH AND MUD HIGH TORQUE
Product selling points
A good product is not necessarily the most technological and advanced, but it must be the most in line with the actual needs. To make this product, we can not rely solely on designers. We know this well, so we have two groups of design teams for the product. A group of after-sales engineers with more than 30 years of domestic and foreign construction experience, and a group of designers with rich working experience graduated from well-known colleges and universities, which are based on professional division of labor (mechanical design and manufacturing and automation, material forming, mechanical and electronic engineering, manufacturing engineering, etc.). We will combine the rich practical construction experience and the most top professional theoretical knowledge to meet your various needs.
Technical Parameters:
Item | Unit | CDC-800 | |
Max drilling depth | m | 800 | |
Drilling diameter | mm | 500 | |
Air pressure | Mpa | 1.2-3.5 | |
Air consumption | m3/min | 16-55 | |
Rod length | m | 6 | |
Rod diameter | mm | 89/114/127 | |
Main shaft pressure | T | 25 | |
Lifting force | T | 35 | |
Fast lifting speed | m/min | 14 | |
Fast forwarding speed | m/min | 21 | |
Max rotary torque | N.m | 10000 | |
Max rotary speed | r/min | 120 | |
Big tool winch lifting force | T | 2 | |
Jacks stroke | m | 1.6 | |
Drilling efficiency | m/h | 10-35 | |
Moving speed | Km/h | 2.5 | |
Weight of the rig | T | 12 | |
Dimension | m | 6.4*2.08*2.8 | |
Working condition | Unconsolidated formation and Bedrock | ||
Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling | ||
Suitable hammer | Medium and high air pressure series | ||
Optional accessories | Mud pump, Gentrifugal pump, Generator, Foam pump |
Advantage of water well drilling rig:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. The water well drilling machine is easy to transport and can learn how to handle the water well drilling machine in short time;
4. The water well drilling machine can drill through hard stratum
FAQ;
1. Product warranty period
12 months after the goods arrive
