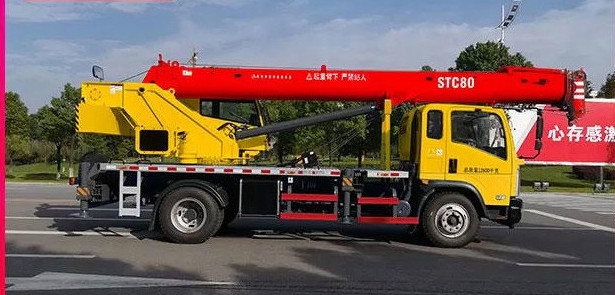

103kw 2600rpm Crane Construction Equipment

Crane

Size parameters

Overall length: 9300mm Overall width: 2400mm Overall height: 3210mm

Dynamic parameters

Engine model: Yuchai YC4E140-56 China Ⅴ Engine rated output power: 103/2600Kw/rpm Maximum engine output torque: 800/(1200-1700) N.m/rpm

Driving parameters

Maximum driving speed: >90Km/h Minimum turning radius: 8m Maximum gradeability: 34% Fuel consumption per 100 kilometers: 18L

Performance parameter

Maximum lifting moment: basic arm 318kN.m Maximum lifting moment: the longest main boom 203kN.m Lifting height: basic arm 26m Lifting height: the longest main boom 9m Boom length: basic arm 8m Boom length: the longest main boom is 25.6m

Working speed parameter

Maximum speed of main winch single rope (no load): >140m/min Full extension/contraction time of boom: 32/35s Full lifting/falling time of boom: 30/50s Rotation speed: 2r/min Horizontal outrigger full extension/contraction time: 20/15s Vertical legs fully retracted/release time: 20/15s
