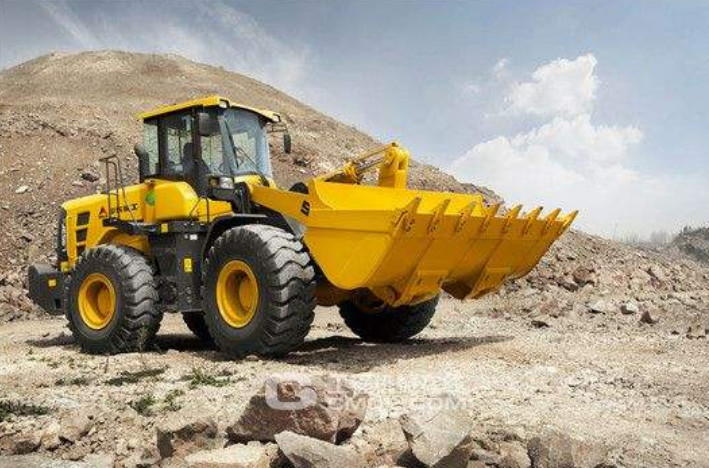

2500kg Rated Load 3600mm Loader Construction Equipment

Loader

Small and flexible, multi-purpose, easy to operate, safe, comfortable and easy to maintain

Articulated frame, high-strength boom design, structural optimization, stable operation.

Split detachable cab, panoramic view, double door design, comfortable and safe.

Luochai turbocharged engine, powerful.

The control handle can be equipped with mechanical double handle, mechanical single handle and pilot single handle, which are suitable for different operators.

Detail parameters

technical parameter

Walking method Rated loading quality (kg) 2500

Operation quality of the whole machine (kg) 8000

Engine brand and model Weichai Deutz / Dongfanghong 6105 supercharged

Engine rated power (kw) 92

Unloading height (mm) 3600 (can be increased)

Unloading distance (mm) 1000

Minimum turning radius (mm) 5100

Drive mode: four-wheel drive Variable speed method High and low speed stepless speed change Gearbox type 315 split gearbox Dimensions (mm) 6750*2100*3100

1. The latest instrument design, with a chronograph, makes the vehicle information more obvious 2. Double high and low speed with running gear, low speed torque is twice as high as before, and high speed gear is 38 kilometers per hour. Greatly improve the efficiency of the whole vehicle. 3. Robot automatic welding equipment to ensure the welding quality, the external appearance of the welding seam is uniform and the welding is firm 4. Single lever operation, reduce driver fatigue and improve work efficiency 5. The vehicle's hydraulic oil pipe joints are fully sealed butt joints with the American Eaton standard H head, which has a higher sealing effect, is less prone to oil leakage and oil leakage, has lower maintenance costs, and has a service life 5-8 times that of ordinary spherical joints. 6. All the inlet and return oil pipes are made of steel braided oil pipes with a pressure resistance of 16Mpa to ensure the smoothness of the oil pipes 7. Four-wheel caliper disc brake, dual-pump brake, plus large cylinder, oil pipe is made of steel braided oil-resistant high-pressure pipe, safe and reliable. 8. Welding gas uses binary mixed gas, argon gas (AF+C0), welding strength increased by 5 times 9. The main parts of the whole car are made of 0345BR material (commonly known as 16 manganese) 10. The oil cylinder adopts the standard four-layer seal of the excavator to prevent oil leakage and pressure relief, greatly increasing the service life 11. The pin shaft adopts 40CF chromium high frequency splash fire modulation, and the locking plate is enlarged 12. The bushing is made of TMC nylon to maintain good mechanical properties at 450F 13. Heavier bucket and double-layer shovel plate are used to increase service life. 14. The whole car adopts three-dimensional computer design to make all the stress points of the whole car more reasonable and balanced, and improve the efficiency of the whole car.
