| Warranty: | 1 YEAR | Power(w): | 144KW |
|---|---|---|---|

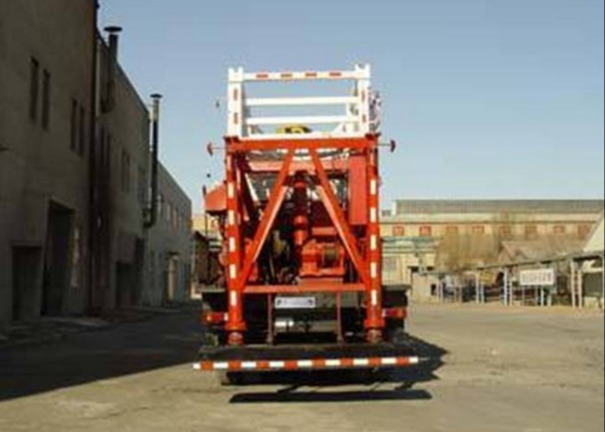

| Drilling Depth: | 600-720M | Name: | Bore Hole 144kw Truck Mounted Drill Rig Equipment |
| Highlight: | bore hole truck mounted drill rig,144KW borehole drilling rig,144kw truck mounted drill rig |
||
Military drilling machine, fast drilling completion, highly integrated drilling machine
Product selling points
our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs. customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on. the vehicle-mounted water well drilling rig is divided into different models according to the drilling depth, the maximum depth can reach 720 meters.
| Dimensions(mm) | Working | 10750×2500×13000 | ||||||
| Transport | 11750×2500×4500 | |||||||
| Whole machine weigher (t) | 25 | |||||||
| Crew/operations staff (名) | 2 | |||||||
| Maximum speed(Km/h) | 70 | |||||||
| Automobile Chassis | Chassis Sinotruck | HOWO | ||||||
| Chassis Model | ZZ2257M5857 | |||||||
| Driving Mode | 6×6 | |||||||
| Wheelbase (mm) | 5800+1400 | |||||||
| Drilling | diameter of holes(mm) | 500 | ||||||
| Rig | Ability | Depth(m) | 600 | |||||
| Power | Model | BF8L513C | ||||||
| Power (kw/rpm) | 213/2300 | |||||||
| Number of cylinders | 8 | |||||||
| Drill rod | Drill rod inside(mm) | φ89(73)×6000 φ114×4500 | ||||||
| Top head Drive | Through hole diameter(mm) | Φ260—φ600 | ||||||
| speed(r/min) | 0~130 | |||||||
| Torque Nm | 8400 | |||||||
| Type | Cylinder chain | |||||||
| To enter Agency | pull back(kg) | 25000 | ||||||
| pill down(kg) | 10000 | |||||||
| Stroke(m) | 7.6 | |||||||
| Shackle body shackle maximum torque(kN.m) | 30 | |||||||
| Vice hoist | Single cable tension(kg) | 3000 | ||||||
| Rope(mm) | φ13 | |||||||
| Line speed m/min | 0~45 | |||||||
| Rope capacity m | 71 | |||||||
| 工Hoist | Single cable tension(kg) | 1000 | ||||||
| Rope(mm) | φ10 | |||||||
| Line speed m/min | 0~36 | |||||||
| Rope capacity m | 35 | |||||||
| centrifugal sand pump on the chassis | Model | JSB6×5×11 | ||||||
| Maximum displacement | 120-220m³/h | |||||||
| pump head | 26m | |||||||
| skid mounted Mud Pump on the ground | Model | BW1100 | ||||||
| Pressure(MPa) | 5 | |||||||
| Maximum displacement(l/min) | 1100 | |||||||
| mast | Type | Truss form | ||||||
| Load(t) | 40 | |||||||
| Height (m) | 11 | |||||||
air compressor | Model Ingersoll-Rand | RHP825WCAT | ||||||
| pressure | 21bar | |||||||
| flow | 23.5m³ | |||||||
| Dimensions(mm) | 4060*2000*2032 | |||||||
| (L)Displacement of Diesel Engine | 8.8 | |||||||
| Rated Rotate Speed of Diesel Engine | 1800rpm | |||||||
| Rated Idling of Diesel Engine | 1350rpm | |||||||
| (kw)Disel Engine Power | 261kw | |||||||
| Cooling Method of Diesel Engine | Diesel/Water | |||||||
| (V)Electric System Voltage | 24 | |||||||
| (L)Fuel tank capacity | 550 | |||||||
| (kg)Weight | 4400 | |||||||
