Warranty: | 1 YEAR | Power(w): | 144KW |
---|---|---|---|

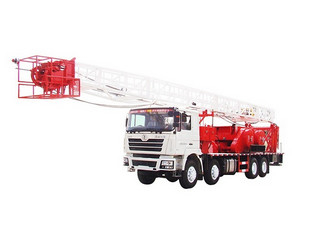

Drilling Depth: | 600-720M | Name: | 1 Year Warranty 600m Iso Truck Mounted Drill Rig |
High Light: | iso truck mounted drill rig,600m truck mounted drill rig,truck mounted drill rig 600m |
Military drilling machine, fast drilling completion, highly integrated drilling machine
Product selling points
1. The rig can be either crawler, trailer or truck mounted and it can be personalized according to the various customers’ requirements.
2. material
The main material of the rig is high strength seamless square pipe, which has excellent torsional performance and load-bearing capacity. The basic material of the whole equipment comes from large steel manufacturers such as Angang. They refuse to reduce the material standards and product costs.
Our Services
1, Provide The Technical Solutions;
2, Manufacturing Of Non-standard Equipment;
3, Professional Technical Training And Guidance On Site According To The Contract;
4, supply Accessories At Any Time;
5, Tele-technical Consulting And Services;
6, other Special Technical Service According To Client’s Requirements.
Dimensions(mm) | Working | 10750×2500×13000 | ||||||
Transport | 11750×2500×4500 | |||||||
Whole machine weigher (t) | 25 | |||||||
Crew/operations staff (名) | 2 | |||||||
Maximum speed(Km/h) | 70 | |||||||
Automobile Chassis | Chassis Sinotruck | HOWO | ||||||
Chassis Model | ZZ2257M5857 | |||||||
Driving Mode | 6×6 | |||||||
Wheelbase (mm) | 5800+1400 | |||||||
Drilling | diameter of holes(mm) | 500 | ||||||
Rig | Ability | Depth(m) | 600 | |||||
Power | Model | BF8L513C | ||||||
Power (kw/rpm) | 213/2300 | |||||||
Number of cylinders | 8 | |||||||
Drill rod | Drill rod inside(mm) | φ89(73)×6000 φ114×4500 | ||||||
Top head Drive | Through hole diameter(mm) | Φ260—φ600 | ||||||
speed(r/min) | 0~130 | |||||||
Torque Nm | 8400 | |||||||
Type | Cylinder chain | |||||||
To enter Agency | pull back(kg) | 25000 | ||||||
pill down(kg) | 10000 | |||||||
Stroke(m) | 7.6 | |||||||
Shackle body shackle maximum torque(kN.m) | 30 | |||||||
Vice hoist | Single cable tension(kg) | 3000 | ||||||
Rope(mm) | φ13 | |||||||
Line speed m/min | 0~45 | |||||||
Rope capacity m | 71 | |||||||
工Hoist | Single cable tension(kg) | 1000 | ||||||
Rope(mm) | φ10 | |||||||
Line speed m/min | 0~36 | |||||||
Rope capacity m | 35 | |||||||
centrifugal sand pump on the chassis | Model | JSB6×5×11 | ||||||
Maximum displacement | 120-220m³/h | |||||||
pump head | 26m | |||||||
skid mounted Mud Pump on the ground | Model | BW1100 | ||||||
Pressure(MPa) | 5 | |||||||
Maximum displacement(l/min) | 1100 | |||||||
mast | Type | Truss form | ||||||
Load(t) | 40 | |||||||
Height (m) | 11 | |||||||
air compressor |
Model Ingersoll-Rand | RHP825WCAT | ||||||
pressure | 21bar | |||||||
flow | 23.5m³ | |||||||
Dimensions(mm) | 4060*2000*2032 | |||||||
(L)Displacement of Diesel Engine | 8.8 | |||||||
Rated Rotate Speed of Diesel Engine | 1800rpm | |||||||
Rated Idling of Diesel Engine | 1350rpm | |||||||
(kw)Disel Engine Power | 261kw | |||||||
Cooling Method of Diesel Engine | Diesel/Water | |||||||
(V)Electric System Voltage | 24 | |||||||
(L)Fuel tank capacity | 550 | |||||||
(kg)Weight | 4400 |
