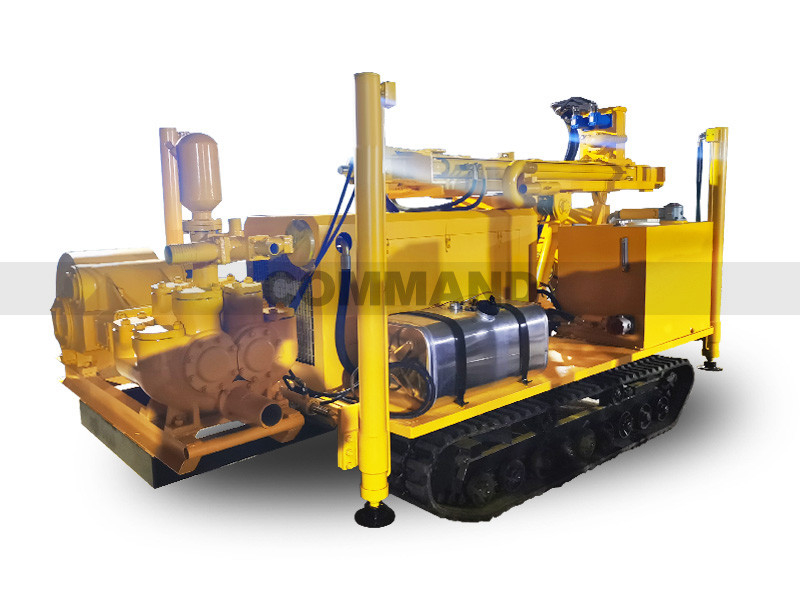

CDL-300N Water drilling machine

CDL-300N Water drilling machine

CDL-300N Water drilling machine
CDL-300N Water drilling machine

Large Image :  CDL-300N Water drilling machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: COMMAND
Certification: ISO9001,CE
Model Number: CDL-300N

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Supply Ability: 10-100 sets pre year
Detailed Product Description


CDL-300N water well drilling rig
Comprehensive overview

Depth:300M
Aperture:390MM
Dimensions;5000mm×2100MM×3050MM
Total Weight:5000KG


Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.

A. CHASSIS
Code Name Model Remarks
A01 Track chassis
Special Purpose for Engineering
CDL-300N Water drilling machine 0
B.Drilling tower, Second floor chassis
Code Name Model Parameter Remarks
B01 Drilling tower Retractable Drill tower load:15T
Operation:Two hydraulic support cylinders
Drill tower height:6.8
CDL-300N Water drilling machine 1
B02 Pull up-Pull down cylinder Cylinder-wire rope structure Pull down:7T
Pull up: 20T
B03
Outrigger cylinder
High outrigger oil cylinder self loading and unloading
Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction
trip:1500MM
CDL-300N Water drilling machine 2
C. Drilling rig power
Code Name Model Parameter Remarks
C01 Diesel engine   Power:120KW
Type:Four Cylinders, Water Cooling and Mechanical Supercharging
Revolutions:1800R/MIN
CDL-300N Water drilling machine 3
C02
Diesel Engine Monitor

Matching
Monitoring information such as speed, temperature and so on through diesel engine sensors CDL-300N Water drilling machine 4
D.Mud pump
Code Name Model Remarks
D01 Mud pump 720L/MIN 3MPA
E. Tool hoist
Code Name Model Parameter Remarks
E01 Hoist ZYJ1B Single rope pull up:1T
F. Rotation form
hydraulic power head
Code Name Model Parameter Remarks
F01 Power head   Torque:7500NM
Revolutions:0-90 RPM

H. Other Parts and Components
Code Name Model Parameter Remarks
H02 Foam pump B-36EX1 Flow:42L/MIN
Pressure:4MPA
Revolutions:660R/MIN
Improving the up-and-down efficiency of drilling cuttings, cooling and lubricating the impactor
CDL-300N Water drilling machine 5
I.operating system
Code Name Model Parameter Remarks
I01 Control box   Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
CDL-300N Water drilling machine 6
