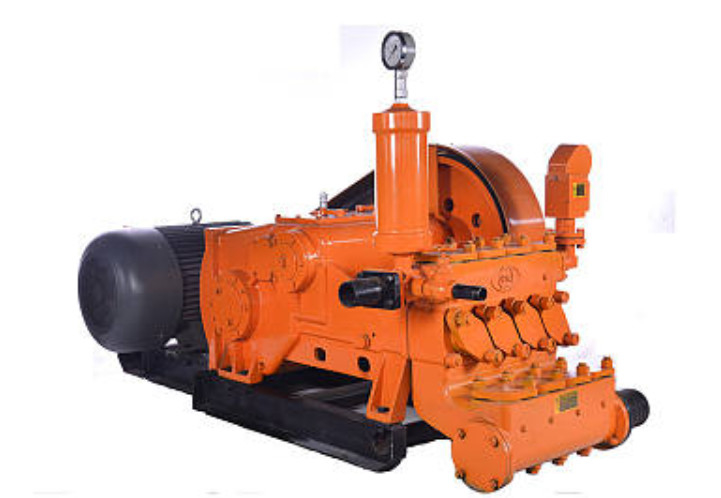

| Highlight: | 132kw Drilling Mud Pump,Dia120mm Cylinder Drilling Mud Pump,1200 L/min reciprocating piston pump |
||
|---|---|---|---|
HIGH FLOW, HIGH PRESSURE AND HIGH EFFICIENCY MUD PUMP, SUITABLE FOR VARIOUS DEPTHS
|
Type |
Horizontal four cylinder reciprocating single acting piston pump |
|||
|
(mm) Cylinder diameter |
120 | |||
|
(mm) Stroke |
140 | |||
|
(time/min) Pump speed |
215 | 174 | 152 | 84 |
|
(L/min) Flow |
1200 | 970 | 846 | 467 |
|
(MPa) Pressure |
5.5 | 6 | 7.5 | 10 |
|
(mm) Outlet pipe diameter |
76 | |||
|
(mm) Inlet pipe diameter |
152 | |||
|
(Kw) Power |
132 | |||
|
(mm) shape size |
1650*1150*1200 | |||
|
(kg) Weight |
1400 | |||
