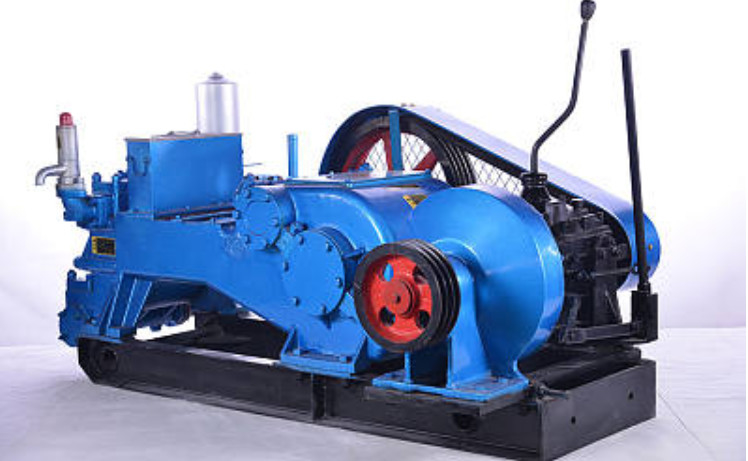

Horizontal Dia110mm Cylinder Drilling Mud Pump
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Horizontal Drilling Mud Pump,Dia110mm Cylinder Drilling Mud Pump,55kw single acting piston pump |
||
|---|---|---|---|
HIGH FLOW, HIGH PRESSURE AND HIGH EFFICIENCY MUD PUMP, SUITABLE FOR VARIOUS DEPTHS
|
Type |
Horizontal three cylinder reciprocating single acting piston pump |
||||
|
(mm) Cylinder diameter |
110 | ||||
|
(mm) Stroke |
100 | ||||
|
(time/min) Pump speed |
160 | 103 | 65 | 36 | 21 |
|
(L/min) Flow |
390 | 250 | 160 | 90 | 52 |
|
(MPa) Pressure |
8 | 11 | |||
|
(mm) Outlet pipe diameter |
51 | ||||
|
(mm) Inlet pipe diameter |
89 | ||||
|
(Kw) Power |
55 | ||||
|
(mm) shape size |
2910*1318*1260 | ||||
|
(kg) Weight |
2467 | ||||
