Home ProductsMunicipal Vehicle

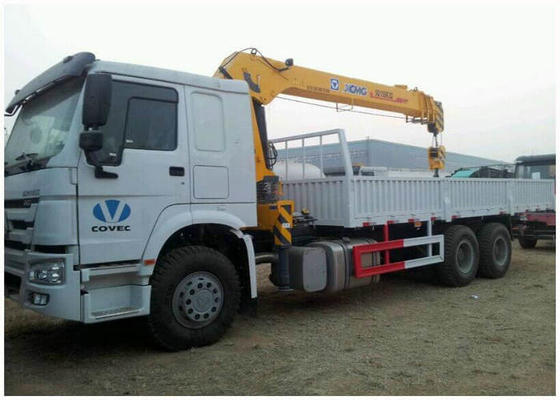

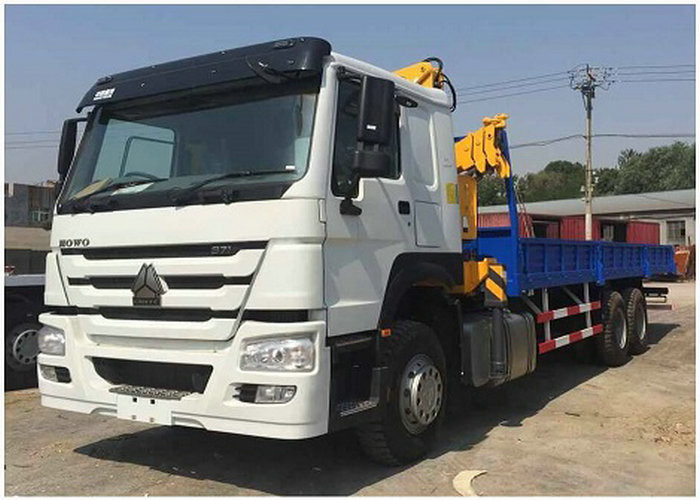

4×2 6×4 8×4 Municipal Vehicle

4×2 6×4 8×4 Municipal Vehicle

4×2 6×4 8×4 Municipal Vehicle
4×2 6×4 8×4 Municipal Vehicle 4×2 6×4 8×4 Municipal Vehicle

Large Image :  4×2 6×4 8×4 Municipal Vehicle Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: COMMAND MACHINE
Certification: ISO
Model Number: CCS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Normal packaging
Delivery Time: 35days
Payment Terms: T/T L/C
Supply Ability: 10+SET+per15DAYS
Detailed Product Description
Driving Form: 4x2, 6x4, 8x4 Emission Standard: Euro 2
Displacement: 9.726 L Speed Ratio: 4.42
Oil Tank: 400L Container Size: 7200 * 2300 * 800 Mm
High Light:

4×2 Municipal Vehicle

,

8×4 Municipal Vehicle

,

6×4 municipal trucks

HIGH EFFICIENCY TRUCK CRANE





Chassis model: zz1257n5247w

Driving form: 4x2, 6x4, 8x4

Cab HW76 - HOWO extended cab. The basic configuration is single sleeper; new seats; up and down, front and back adjustable steering wheel; European new integrated heater; VDO instrument synchronized with world high-grade heavy truck; four point full floating suspension (front spiral spring, rear air spring) + damping device for road vehicles; four point full floating spring suspension + damping device for non road vehicles, all models of cabs are equipped with It has lateral stability device, double lock structure safety belt, external sunshade, the fourth generation air conditioning, the air conditioning control panel with LED lighting for the LCD screen, cruise, generator voltage abnormal sound warning system (to prevent damage to electronic devices), electric doors and windows.

Engine manufacturer: sinotruk

Four stroke direct injection diesel engine

Engine model: wd615.69, 336 HP; WD615.47, 371HP; wd615.87290hp;

Emission standard: Euro 2

In line six cylinder water-cooled turbocharged intercooling

Displacement: 9.726 L

Transmission HW19710, 10F & 2R with PTO

Steering system ZF power steering model zf8118, power assisted hydraulic steering

Front axle hf9,1x9000 kgs

Double section beam turning

Rear axle hc16, 2x16000 kgs

Press axle housing, center single reduction with hub reduction, with differential lock between wheel and axle.

Speed ratio: 4.42

Chassis frame: with 300x80x8mm profile parallel ladder, subframe beam steel cold riveting

Front suspension: 10 semi elliptical leaf springs, hydraulic telescopic double acting shock absorbers and stabilizers.

Rear suspension: 12 leaf semi elliptical spring, bogie spring and stabilizer

Braking system: double circuit air pressure braking

Parking brake (emergency brake): spring energy, compressed air works on the front axle and rear wheel.

Secondary braking: engine exhaust braking

Power system working voltage: 24 V, negative grounding

Starter: 24 V, 5.4 kw

Generator: three phase, 28 V, 1500 W

Battery: 2 × 12V, 165ah

Cigarette lighter, horn, headlight, fog light, brake light, indicator light and reversing light

Tire 315 / 80R22.5 with one spare

Oil tank 400L

Container size: 7200 * 2300 * 800 mm;

Boom: 10 tons; XCMG brand

Vehicle size: 11250 * 2600 * 3850mm
